Eddystone Configuration
Eddystone menu allows to configure up to 4 slots for
Eddystone frames. Each slot can be configured as Eddystone-UID, URL or
TLM (iOS app presently does not allow to configure EID frame).

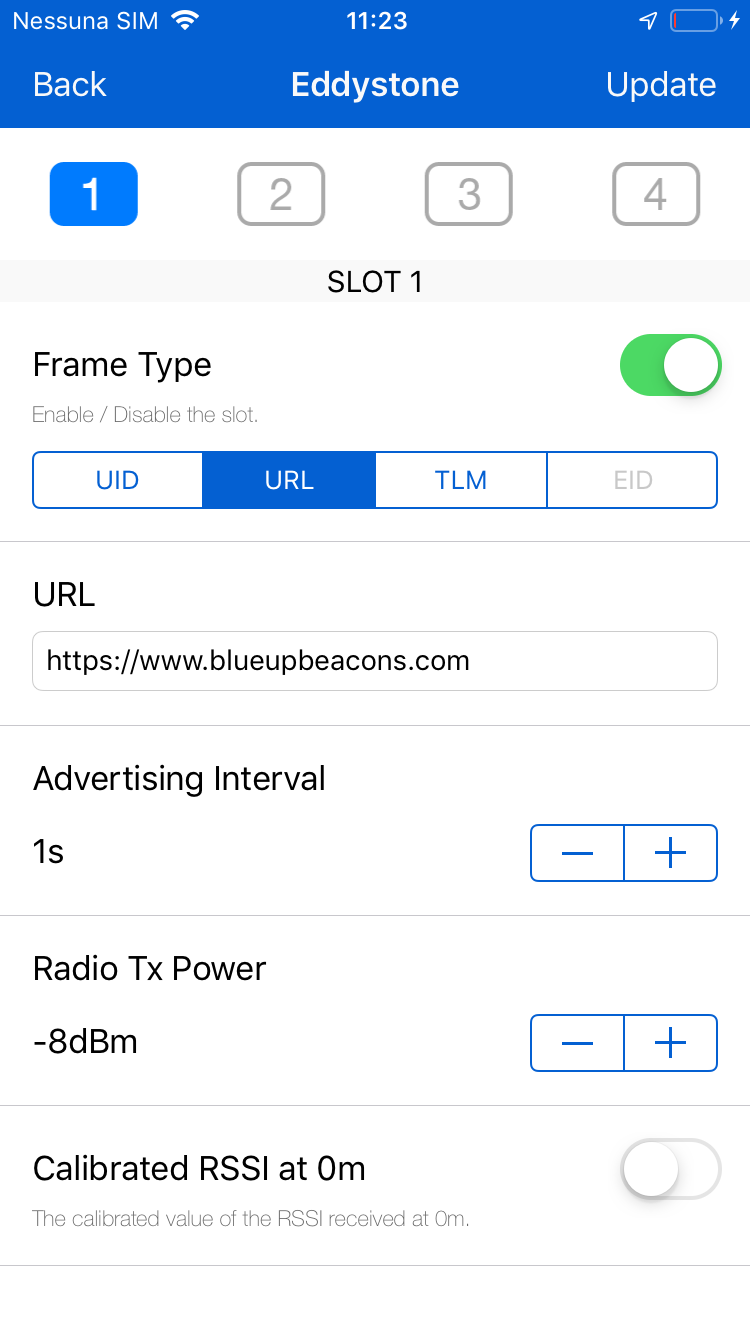

By default, you will find Slot 1 configured as URL, with https://www.blueupbeacons, and other slots not configured.
You can configure each slot according to your needs.

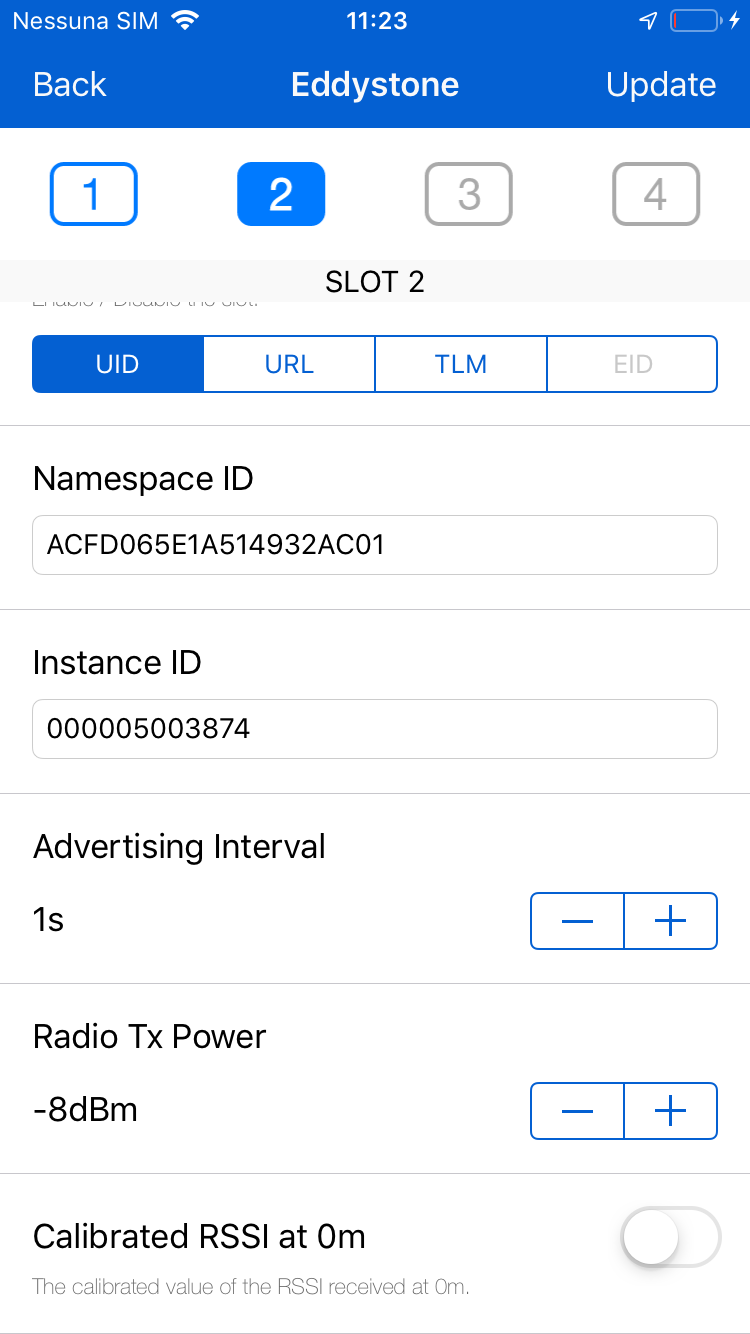

For Eddystone-UID you need to specify NameSpace ID (10 bytes) and Instance ID (6 bytes).
For Eddystone-URL you need to specify URL address (URL scheme can be selected by pressing on the bold URL scheme section).

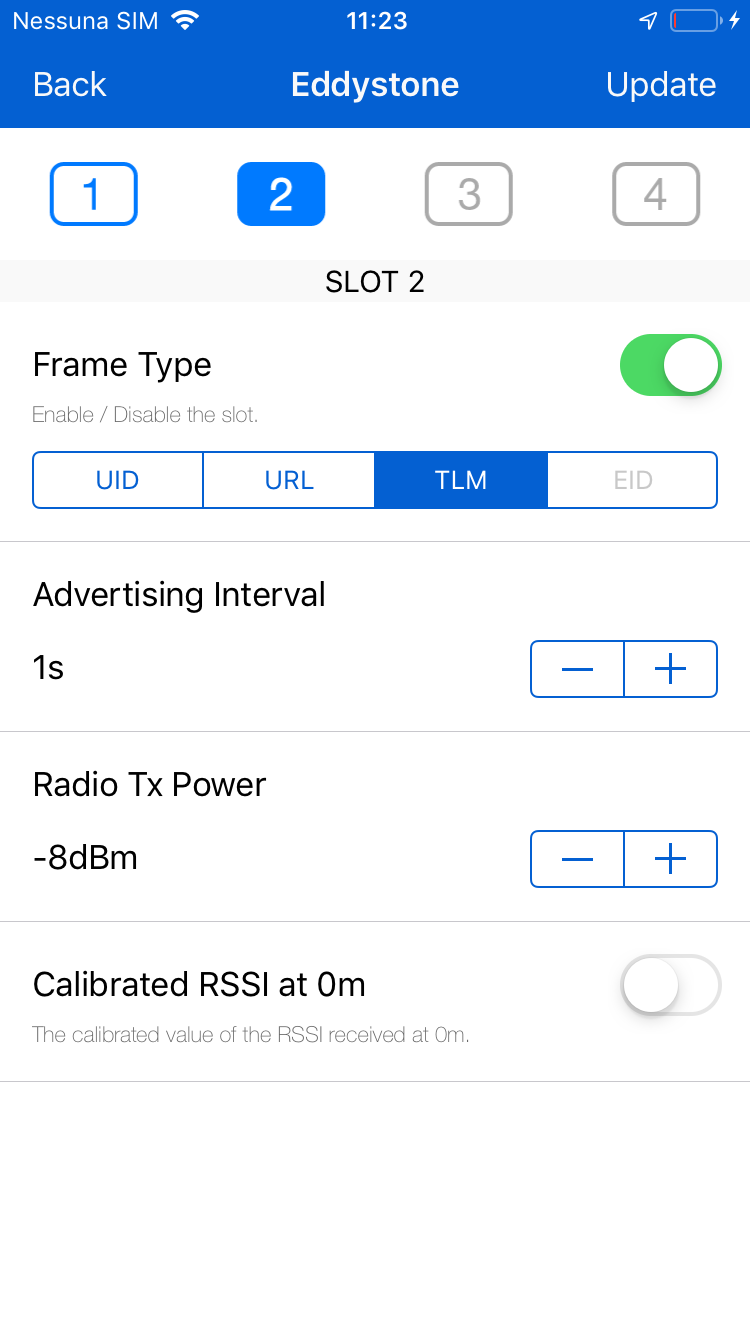

For all configured slots, you need to specify advertising interval and transmission power. Additionally you can modify default calibrated RSSI at 0 meter (according to Eddystone specifications), but please consider that modifying default value can affect proximity estimation (contact us before doing such modification).

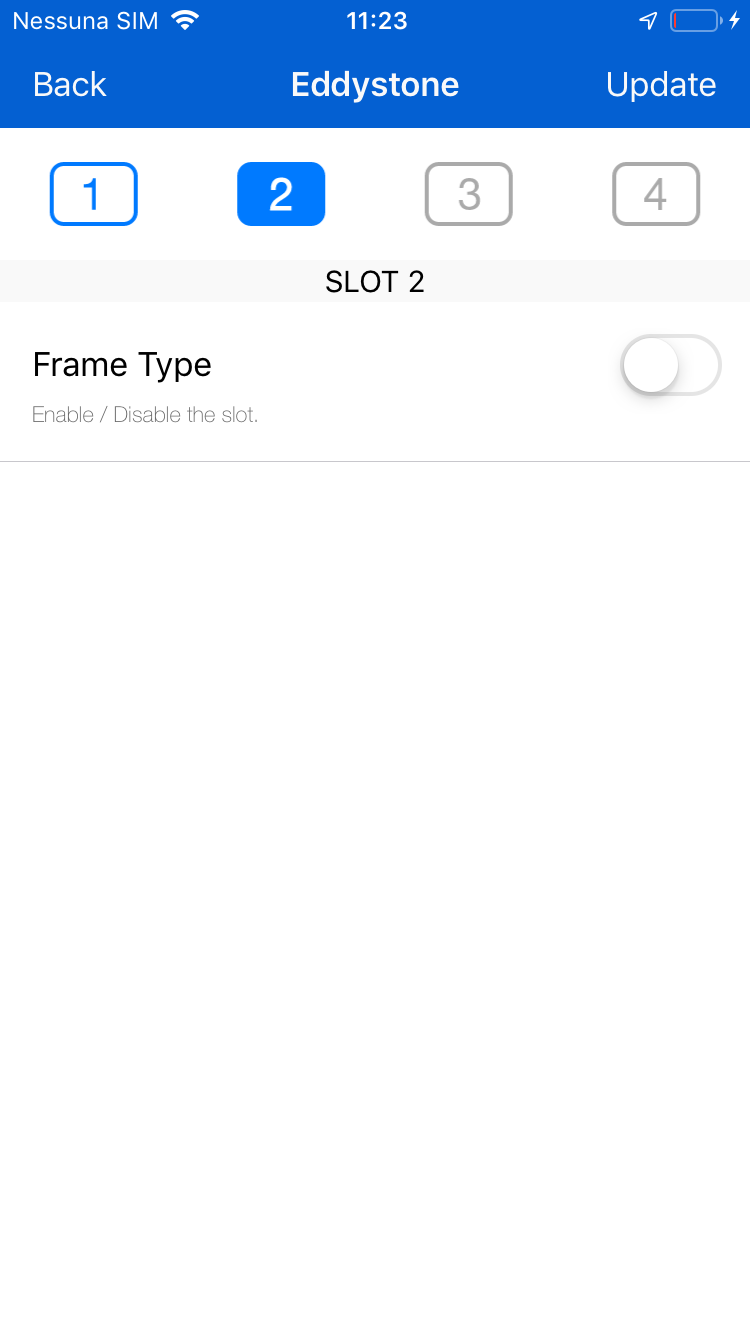

If you do not need Eddystone-frame broadcast, you simply need to disable all slots from Slot 1 to Slot 4.
In order to update beacon with modified Eddystone configuration you can:
- press "Update" at the top right;
- press "Back": you will be asked to update beacon with new configuration data.
By default, you will find Slot 1 configured as URL, with https://www.blueupbeacons, and other slots not configured.
For Eddystone-UID you need to specify NameSpace ID (10 bytes) and Instance ID (6 bytes).
For Eddystone-URL you need to specify URL address (URL scheme can be selected by pressing on the bold URL scheme section).
For all configured slots, you need to specify advertising interval and transmission power. Additionally you can modify default calibrated RSSI at 0 meter (according to Eddystone specifications), but please consider that modifying default value can affect proximity estimation (contact us before doing such modification).
If you do not need Eddystone-frame broadcast, you simply need to disable all slots from Slot 1 to Slot 4.
- press "Update" at the top right;
- press "Back": you will be asked to update beacon with new configuration data.
